Product Description

  Dual-way intercom system for counter

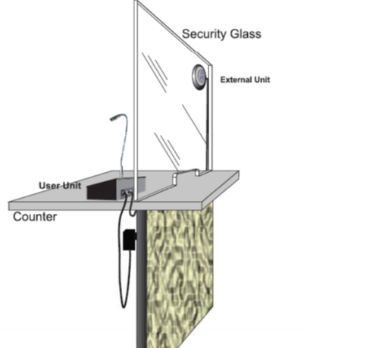

Suitable for the Bank, Securities Company, Hospital, Station where the Burglar-proof glazing is installed.

1. Streamline desige

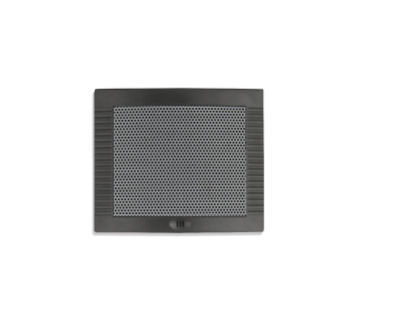

• The main unit has aluminum alloy shell, and the extension has built-in speaker.
• This system has simple connection for DIY operation.

       2. High quality

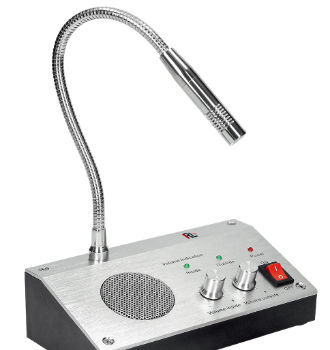

• This system has top-quality speaker and high-sensitive microphone.
•  Especially the metal tube microphone is deal for the counter and the dual-way inter communication.

   Product Description

3. Good performance

• The voice from this system is clear, and natural.
•  There is a switch only for the volume control

4. Advanced technique

•  For this system, we adopted the advanced microcomputer from U.S.A.
• Track-interlock technique ensures the stable performance without noise and side-tones

5. Definite instruction

• The indicating lamp shows the track’s working status

• The voice from this system is clear, and natural.
•  There is a switch only for the volume control

Product Description

Simple operation I

Easy for dual-way intercommunication without pressing button.

Simple operation  II

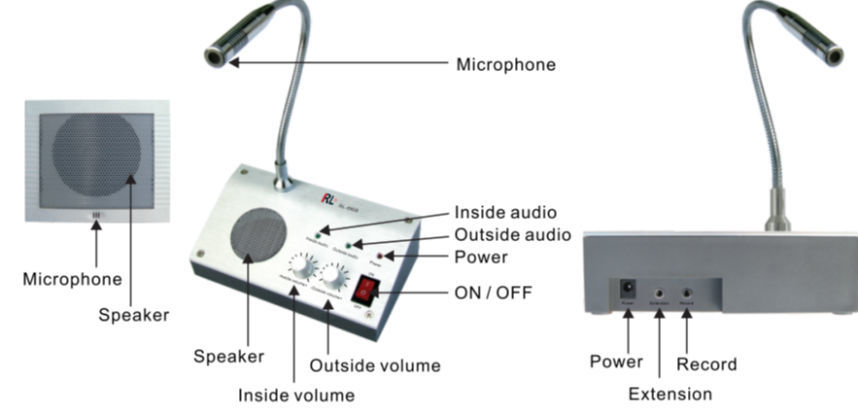

This system has two knobs to adjust the inside and outside volume.When the indicating lamp for audio turns green, the intercommunication could begin.

Simple operation Ⅲ

You could record the voice through record jack.

Best choice It is suitable for the Bank, Securities Company, Hospital, Station where the security glazing is installed. Best choice for your company.

Performance Data

• Working voltage:DC9V
• Most working current: 500mA
• Main sound box, sub-sound box: 2w-2w 100Hz-15KHz
• Inside microphone: -48db+2db 20Hz-20KHz
• Outside microphone:-48dbt2db 20Hz-16KHz
• Exterior size: Main box 158x87x46(335)mm

                                Sub-box 91x77x23mm

Feature

• Dual-way intercommunication
• Slim fit design Of speaker
• Anti-interruption and noise
• Dual-way audio record
